City / Ladies Frame

  • City-Frame 2026

  • City-Frame 2026

    play table (unfolded)

  • City-Frame 2026

    play table (folded)

  • City-Frame 2026

    Frame + resonance tubes together in a bag

  • City-Frame 2026

    Foldable resonator tube array and/or tube-in-tube

  • City-Frame 2026

    Aluminum resonance tubes
    (Support rings glued on)


  • City-Frame 2026

    3D-Printed Resonance Tubes
    (very light)


  • City-Frame 2026

    3D-Printed Resonance Tubes
    with flaps


  • City-Frame 2026

    Base Frame

  • City-Frame 2026

    Base Frame
    (Side panels removed)


  • City-Frame 2026

    Base Frame
    (folded)


Update 2026:
The “ladie's frames,” also known as “city frames,” have been completely redesigned for use with the nested resonance tubes (tube-in-tube).

Transport

The frame, including the nested resonance tubes, now fits entirely into an '88 keyboard bag. https://www.thomann.de/de/gator_gkb_88.htm


Weight

  • With its nested aluminum resonance tubes, the total weight (excluding sound plates) is just under 23 kg.
  • With 3D-printed resonance tubes that nest inside one another, the total weight (excluding sound plates) is just under 20 kg.




Download as DIY - kit

The data and instructions for building your own City frame are provided below for three different bar sets (Musser M55, identical to Malletech Omega, Yamaha 2700, and Premier 751).

All parts that require external manufacturing (aluminum sheet metal fabrication or 3D printing) are available as digital data files.

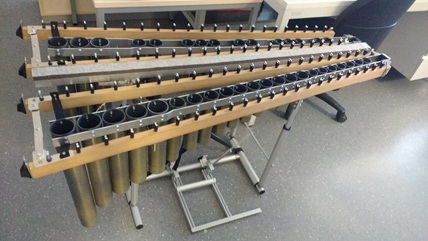

First"Ladies-Frame" from 2018

  • Extrem leichter Rahmen mit Kunststoff-Resonanzrohren

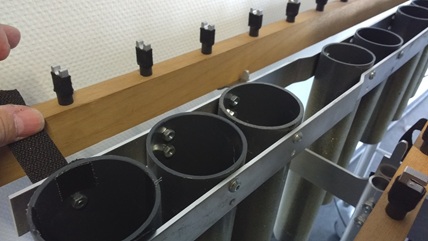

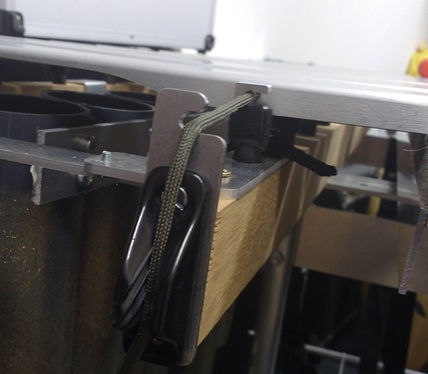

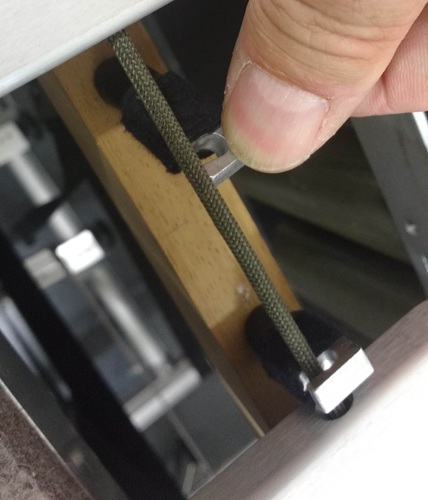

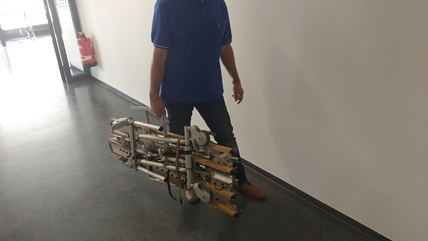

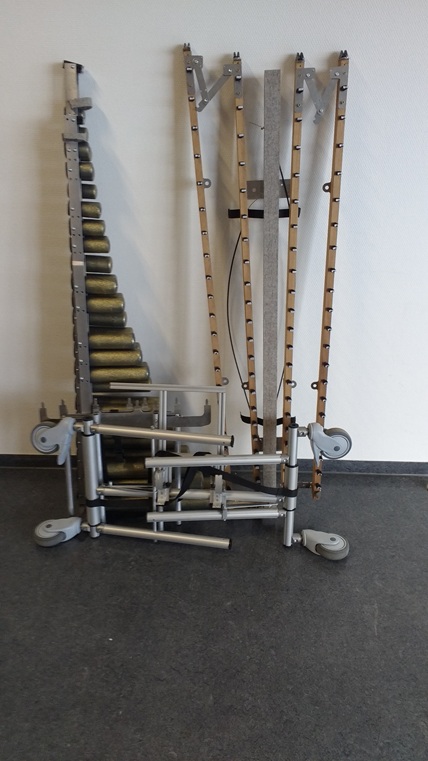

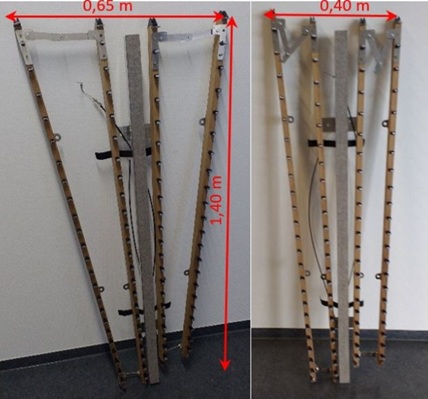

The ladies frames were developed with the aim of minimizing weight. To achieve this, lightweight beams were used as support frames with minimalist aluminum joints. The two inner beams form a fixed unit with the damper, while the outer beams can be attached to the inner beams for transport. This allows the frame to fit completely into a keyboard bag. The resonance tubes made of PVC or 3D-printed material simply hang in straps inside the frame.

The ITEM frame from the suitcase frame, which has already been optimized in terms of weight, is used as the base frame.
